UltraVideo 1.0 for the Atari XE

UltraVideo 1.0 for the Atari XE by Jon Halliday, January 2010


Following on from UltraVideo 1.0 for the Atari 800XL, I thought it was time to publish an
account of what I’ve managed to achieve so far with the XE. Having done some experiments
with my 130XE, I left the machine alone for a while and only threw a diode into the circuit
when I powered it up again a few months later to find there was no picture (the problem
turned out to be a poorly socketed OS ROM chip). When the machine eventually booted, I
was pleasantly surprised by the results of my un-premeditated modifications.
In many ways, my XE video mod is simpler than UltraVideo XL, and derives 90% of its
methodology from Charles Cole’s famous and widely used SuperVideo XE mod. I should
make it clear that I although I’m quite a seasoned modder, I understand very little about
electronics and most of the “discoveries” I’ve made have been the accidental result of
carefully trying out different components in what the circuit diagram seems to suggest would
be the best place to put them. One of my attempts at smoothing out the XE s-video signal
involved a chain of components I was reliably informed shouldn’t have worked at all, but they
actually did a pretty good job.
Anyway, the first time I saw the XE’s s-video output was through an “eBay cable” hooked up
to an old TFT TV. It looked pretty good (there was a diode in the cable, designed to clean up
the leery signal) until I did a SuperVideo mod on the machine. Then the vertical lines came
back with a vengeance. It took me a year to work up the skill to “downgrade” that machine
again. Thereafter I was distrustful of SuperVideo, particularly since I eventually favoured –
following the success of UltraVideo XL – a “clean” s-video cable for my Ataris.
The XL mod taught me that a sure way to improve the display was to try and isolate luma
and chroma from one another. That means getting rid of the composite output altogether,
and while that’s easy to accomplish on the XL by removing a few resistors, the best way to
do it on the XE is to get rid of the RF modulator box. The XE modulator actually outputs the
composite signal, so it has to go. I have no intention of ever again hooking up an Atari
through via RF in this lifetime, so this is no problem for me. Just be aware that you’ll lose
composite and RF (although you could easily build yourself a composite switch or
manufacture your own composite signal without the RF box: I’ll leave that for someone
cleverer to explain).
In reality, this mod is most of SuperVideo, coupled with the “eBay cable” diode fitted inside
the machine, and the severing of the composite signal.
Disclaimer: Before proceeding, be aware that this mod completely disables composite and
RF output on your XE. It’s intended for those who use s-video exclusively using a plain cable
with no noise-reducing diode inside, and would like the best possible s-video signal. Note
that artifacting will no longer work after this modification is performed. I also take no
responsibility for damage caused by poor soldering/de-soldering or disassembly of the
machine. Work is performed entirely at your own risk and I can’t guarantee that the results
will look the same on another computer/monitor combination as they do on mine.


The Old Display

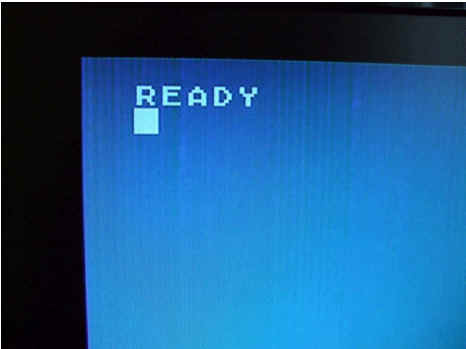

On my LG Flatron M227WD TFT monitor, my stock 130XE used to produce a display like
this through the “eBay” s-video cable:

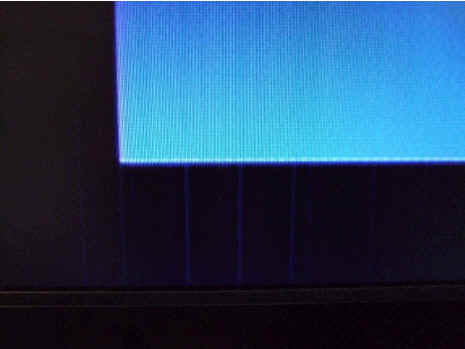

Not too bad, but those vertical lines were still there, made even worse by the high quality of
the LG’s 1080p display. Worse yet, interference was present around the border area:

UltraVideo

Like the XL UltraVideo mod, the XE version is a mix-and-match of the SuperVideo mod, and
I have left out and included modifications according to personal preference. I just went with
what gave the best picture. If you want to slavishly follow my design, you will need:
       1 x 8.2ohm resistor
       3 x 75ohm resistors
       1 x 1N4002 rectifier diode
       1 x 220uf radial-lead electrolytic capacitor

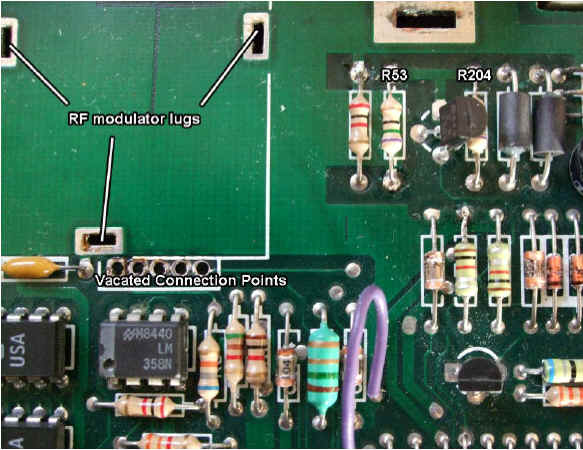

1. The first thing we’ll do is totally disconnect and remove the RF modulator. This is the
long silver box at the top left of the motherboard, and is secured in place by four lugs
soldered into slots in the board (the top lug – at the rear of the board – isn’t visible in
the photograph). There are also five signal pins soldered to the board. The best
approach is to first remove the solder from around the signal pins (using a solder
sucker). This means we can then proceed to gradually (and carefully) lever the RF
box free by heating the lugs one by one and gently prising the box away from the
board. If you’re not confident desoldering a component of this size, leave it to
someone who can do it for you.

2. With the RF modulator removed, our next job is to replace the resistors R53 and R204 (on either side of the transistor Q3) with 75ohm resistors as shown in the preceding illustration.

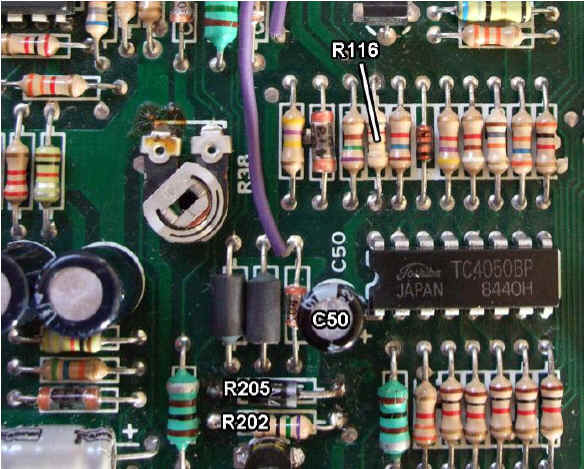

3. Now, moving towards the front of the board (pictured above), we need to replace R116 with an 8.2ohm resistor.
4. The third 75ohm resistor replaces R202, directly behind the output transistor Q2.
5. The 220uf electrolytic capacitor replaces the cap C50 as shown in the picture.
6. Finally, remove resistor R205 and replace it with the 1N4002 diode, positioned with the silver stripe on the right hand side.


We’ve only missed out step 2 of the SuperVideo mod: feel free to experiment to see if the
cap across Q3 and C47/48 improves the picture.
5

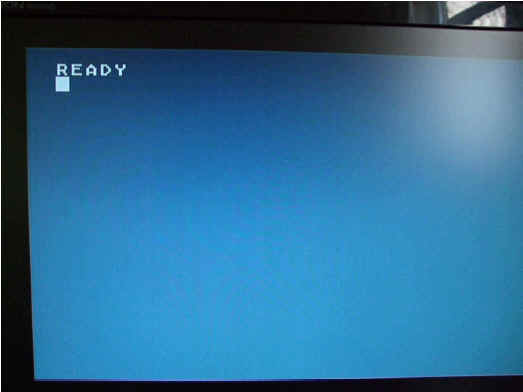

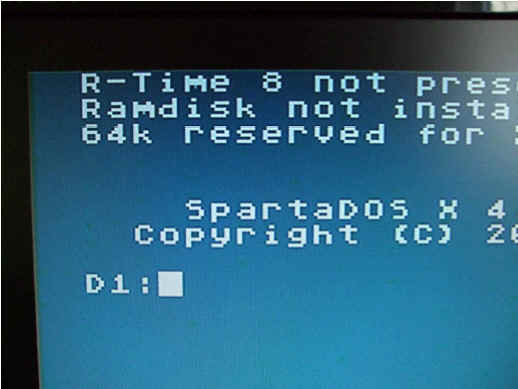

Below are photographs of the resulting s-video output on the LG Flatron through a totally
clean 5-pin DIN to s-video cable:
While there is still the merest trace of vertical banding, text is crisp and clear, although not
quite as well defined as that of the UltraVideo modded 800XL.


Because the quality of the modified XE video output still lags behind that of the XL, I think
there is room for improvement. While the XL modifications were all about removing the
source of interference and noise, the XE mod attempts to overcome and suppress existing
problems. Still, I found it to be a huge improvement, and I hope you do too.
Good luck.


Jon Halliday, January 2010
