The!Cart Review

The!Cart web site

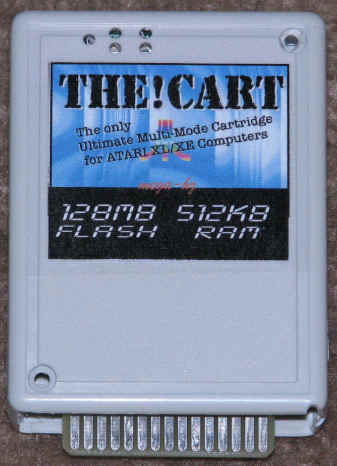

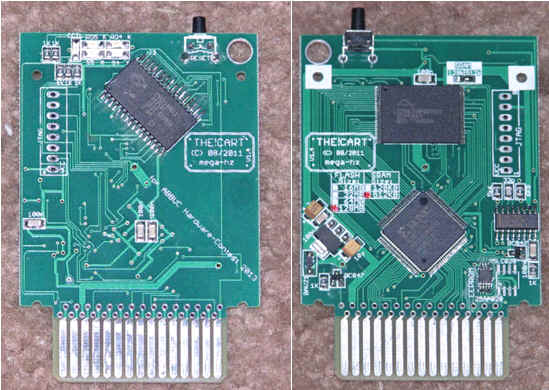

Here are some pictures from the inside the Case. Very nice Job on the PCB and chips.

The!Cart programming information (c) 2013 Matthias Reichl


1. General information

The!Cart is equipped with 128MB flash (Spansion S29GL01 chip), 512k RAM and a 256-byte SPI EEPROM (Microchip 25AA020A). The memory is addressed using 16384 8k banks (64 8k banks when using RAM instead of flash).

 2. Register definition

 The cartridge configuration registers are located at $D5A0-$D5A8. All registers are read/write unless noted otherwise. Unused bits shall be written as '0' and always read back as '0'. Power up configuration is 8k mode ($A000-$BFFF) using flash bank 0, writes to flash are disabled.

 Depending on the selected cartridge mode additional registers are enabled at $D5xx.

 The primary bank register also serves as a base bank register for the various sub-modes. The secondary bank register is only used in "flexi mode".

 $D5A0: primary bank register low byte (0-255, default: 0)

$D5A1: primary bank register high byte (0-63, default: 0)

$D5A2: primary bank enable (1=enable, 0=disable, default: 1)

 $D5A3: secondary bank register low byte (0-255, default: 0)

$D5A4: secondary bank register high byte (0-63, default: 0)

$D5A5: secondary bank enable (1=enable, 0=disable, default: 0)

 $D5A6: cart mode select (see section on cartridge modes, default: 1 / 8k)

 $D5A7: flash/ram selection and write enable control (0-15, default: 0)

bit 0: primary bank write enable (0 = write protect, 1 = write enable)

bit 1: primary bank source (0 = flash, 1 = RAM)

bit 2: secondary bank write enable (0 = write protect, 1 = write enable)

bit 3: secondary bank source (0 = flash, 1 = RAM)

$D5A8: SPI interface to EEPROM

bit 0: SPI CLK

bit 1: SPI CS

bit 7: SPI data in (on reads), SPI data out (on writes)


$D5AF: configuration lock

Writing to this register disables "The!Cart" registers at $D5Ax.


3. Supported cartridge modes

 Cartridge mode is selected with bits 0-5 of $D5A6, values other than the ones listed here are reserved (and result in "cartridge off").

$00: off, cartridge disabled

$01: 8k banks at $A000

$02: AtariMax 1MBit / 128k

$03: AtariMax 8MBit / 1MB

$04: OSS M091

$08: SDX 64k cart, $D5Ex banking

$09: Diamond GOS 64k cart, $D5Dx banking

$0A: Express 64k cart, $D57x banking

$0C: Atrax 128k cart

$0D: Williams 64k cart

$20: flexi mode (separate 8k banks at $A000 and $8000)

$21: standard 16k cart at $8000-$BFFF

$22: MegaMax 16k mode (up to 2MB), AtariMax 8Mbit banking

$23: Blizzard 16k

$24: Sic!Cart 512k

$28: 16k Mega cart

$29: 32k Mega cart

$2A: 64k Mega cart

$2B: 128k Mega cart

$2C: 256k Mega cart

$2D: 512k Mega cart

$2E: 1024k Mega cart

$2F: 2048k Mega cart

$30: 32k XEGS cart

$31: 64k XEGS cart

$32: 128k XEGS cart

$33: 256k XEGS cart

$34: 512k XEGS cart

$35: 1024k XEGS cart

$38: 32k SWXEGS cart

$39: 64k SWXEGS cart

$3A: 128k SWXEGS cart

$3B: 256k SWXEGS cart

$3C: 512k SWXEGS cart

$3D: 1024k SWXEGS cart


4. Details on cartridge modes

 In addition to the main "8k" mode The!Cart introduces a very flexible "16k" mode, called "flexi mode". The primary bank register controls the 8k bank at $A000-$BFFF, the secondary bank register controls the 8k bank at $8000-$9FFF.

 Using the flash/ram select register it's possible to map in either RAM or flash, and the mapped-in RAM can be configured to be read/write or read-only. These settings can be configured independently for the $8000 and $A000 8k banks.

 Flexi mode can also be used to emulate "right" cartridges (by disabling the primary $A000 bank and enabling only the secondary $8000) bank or to emulate both a non-switched 8k "left" and "right" cart.

 The!Cart can also emulate a wide variety of other popular cartridges, like AtariMax, (SW)XEGS and SIC! carts. When one of these "emulated" modes is selected, the corresponding configuration registers are enabled in the $D5xx area. After configuring an emulated mode the "configuration lock" register

at $D5AF should be written to disable the main configuration registers

at $D5Ax. Re-enabling the main configuration registers is then only possible by pressing the button on The!Cart or by  the Atari.

 If the main configuration registers aren't disabled, the corresponding memory addresses ($D5A0-$D5A8 and $D5AF) aren't available to the emulated modes. For example, writing $D5A0 doesn't disable am emulated Atarimax 8MBit cart but will change the bank register.

 5. Using the bank registers

 The primary bank register always addresses the memory in 8k banks. When The!Cart is configured to 16k mode, the least significant bit of the bank register is simply ignored. The emulated bank registers modify the low-order bits of the primary bank register. As a consequence, cartridge data needs to be aligned at memory blocks of the cartridge size (for example: AtariMax 8MBit carts have to start at an

1MB boundary, i.e.  8k bank 128, 256, 384, ...)

 Emulated registers of switchable carts also modify the bank enable register. For example: Accessing $D567 in AtariMax mode sets the 7 low-order bits of the primary bank register to $67 and the primary bank enable register to $01. Accessing $D580 in AtariMax mode sets the primary bank enable register to $00.

 Note: in native (8k and flexi) mode writing to the primary/secondary bank registers automatically sets the primary/secondary enable register to $01.
